▪ Field selectable 3000k (warm white), 4000k (neutral white), & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 169,000 hours of operation with at least 70%of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).**
▪ LED chromaticity based on < 7-step ANSI quadrangles.
▪ LED color maintenance < 0.001 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
▪ PG-5L = 5,000 nominal lumens.*
▪ PG-10L = 10,000 nominal lumens.*
▪ Universal 120-277V (50/60Hz) AC voltage.
▪ 0-10vdc dimming drivers, which provide continuous dimming to 10%of maximum lumen output, are standard.
▪ Mounting options include surface-mounting and pendant-mounting using ¾” electrical conduit.
▪ Optional, integral occupancy/daylight sensor is installed inside the luminaire housing and provides both on/off and dimming functions.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index (Ra) > 80. Red color rendering > -5.
▪ Die cast aluminum housing with white powder coat finish.
▪ Polycarbonate lens.
▪ Easy installation in new construction or retrofit.
▪ cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F).
▪ IP65 rated for ingress protection.
▪ Lens is IK10 rated for impact.
▪ DLC premium approved (primary use categories: Parking Garage Canopy Luminaires).
▪ Complies with FCC Part 15, class A.
▪ Standard models comply with IEC/EN 61000-4-5, surge immunity protection, 2kV. Optional 10kV surge protector available (see below for ordering information).
▪ 5-year warranty on all electronics and housing.

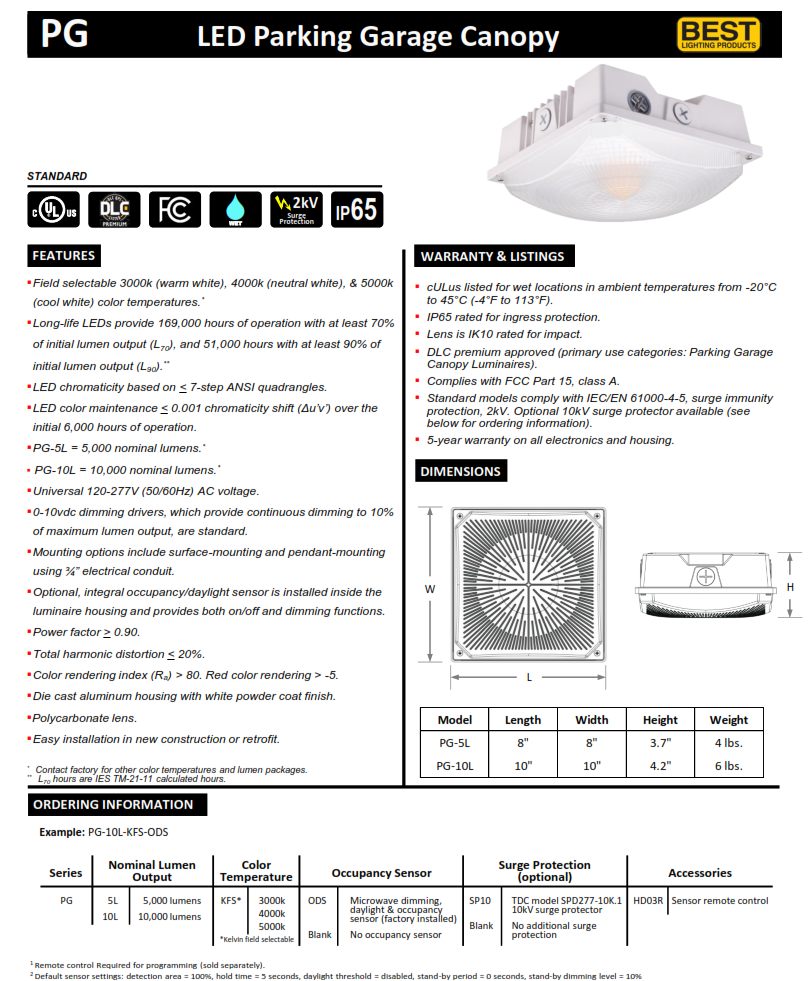

Best Lighting 10,000 Lumen LED Parking Garage Light PG Series

Best Lighting Products

$164.95

(No reviews yet) Write a Review

SKU:: PG-10L-KFS
Shipping:: Calculated at Checkout
