  • The MPC-50HD 360° occupancy sensor uses advanced PIR technology to turn lights on when motion is detected and dim the lights to reduce energy when there is no movement detected within the amount of time selected in the time delay. The MPC-50HD is specially designed with 4 operation modes for use in areas with 0-10VDC fixtures. There are two lens choices available based on ceiling height. Lens 1 is an extended range lens that provides up to 2800 sq. ft. of coverage at a maximum installation height of 50 ft. Lens 2 is a high density lens that provides up to 1200 sq. ft. of coverage at a maximum installation height of 8 ft.

    • Enerlites High Bay 360 Passive Infrared Line Voltage Occupancy Dimming Sensor - MPC-50HD

    $54.00
    (No reviews yet) Write a Review
    SKU:
    MPC-50HD
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

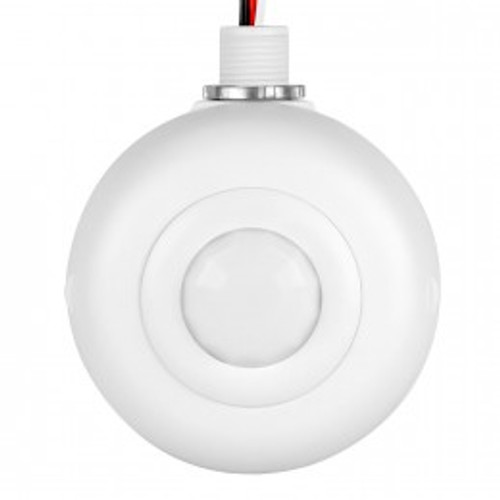

    The MPC-50HD 360° occupancy sensor uses advanced PIR
    technology to turn lights on when motion is detected and dim the lights to reduce energy when there is no movement detected within the amount of time selected in the time delay. The MPC-50HD is specially designed with 4 operation modes for use in areas with 0-10VDC fixtures. There are two lens choices available based on ceiling height. Lens 1 is an extended range lens that provides up to 2800 sq. ft. of coverage at a maximum installation height of 50 ft. Lens 2 is a high density lens that provides up to 1200 sq. ft. of coverage at a maximum installation height of 8 ft.



    Specifications

    • Voltage: 120/277 VAC @50/60 HZ
    • For 0-10 VDC LED Dimming
    • Maximum of 50mA LED Driver Rating
    • Maximum Height: 50 Feet
    • Maximum Resistive Load: 10 A
    • Electronic Ballast: 800VA/120VAC, 1600VA/277VAC
    • Motor: 1/4 HP
    • Comes with 2 Lenses: 1 extended range lens for high bay, 1 for low mounting height
    • Lens 1: MPC-50HD-L1: Mounting height: 50ft Field of view: 360° Coverage :2800 sq.ft
    • Lens 2: MPC-50HD-L2: Mounting height: 8ft Field of view: 360° Coverage :1200 sq.ft
