Product Description

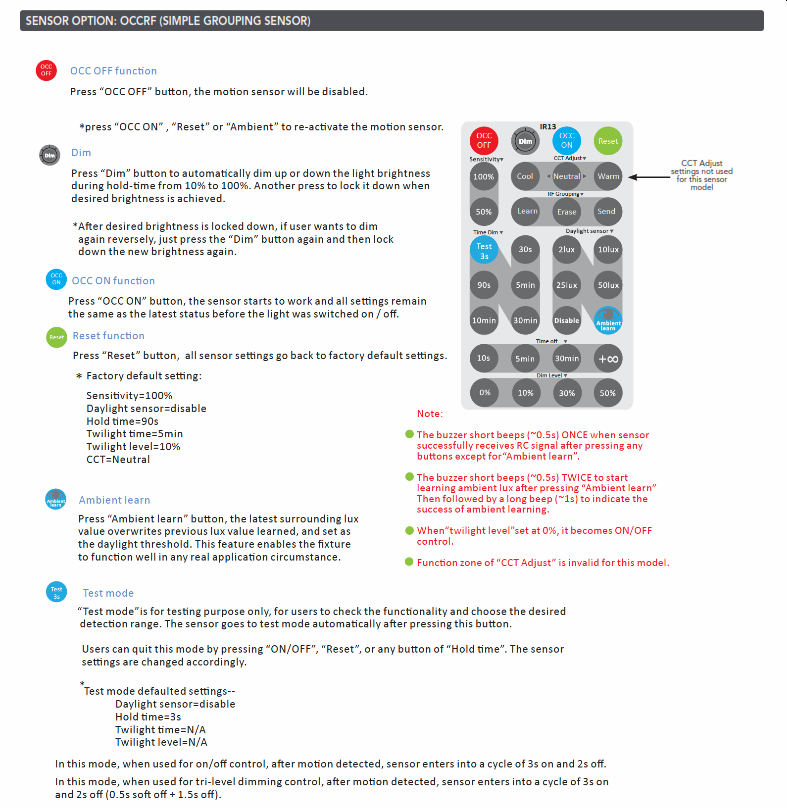

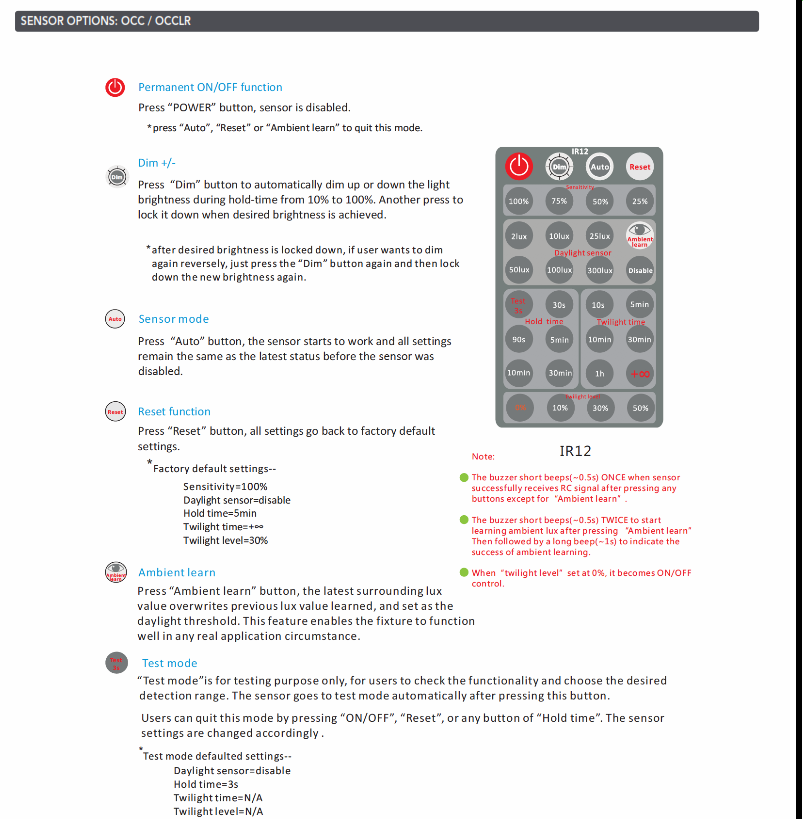

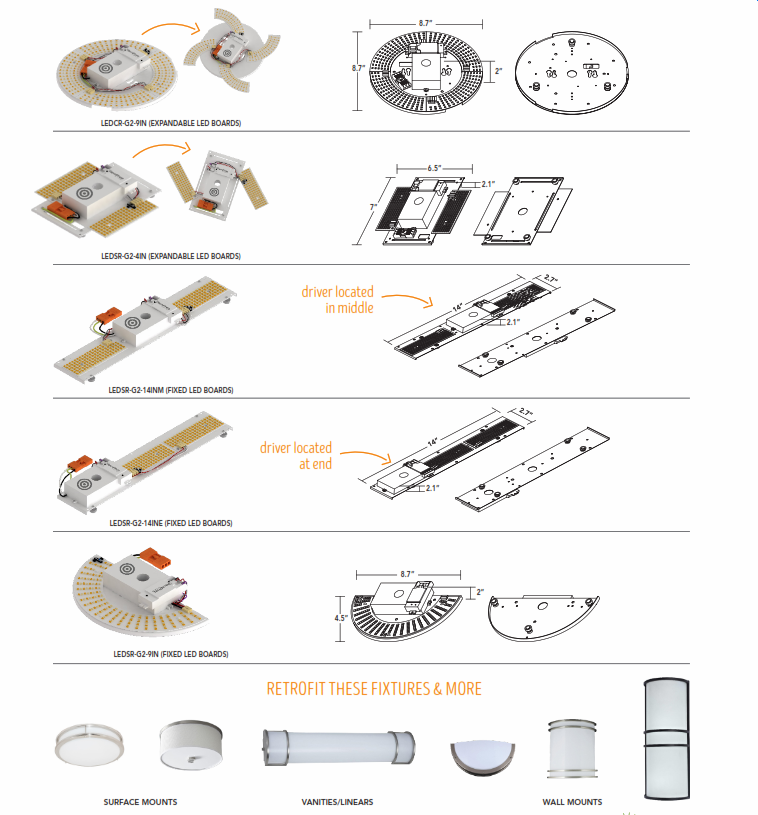

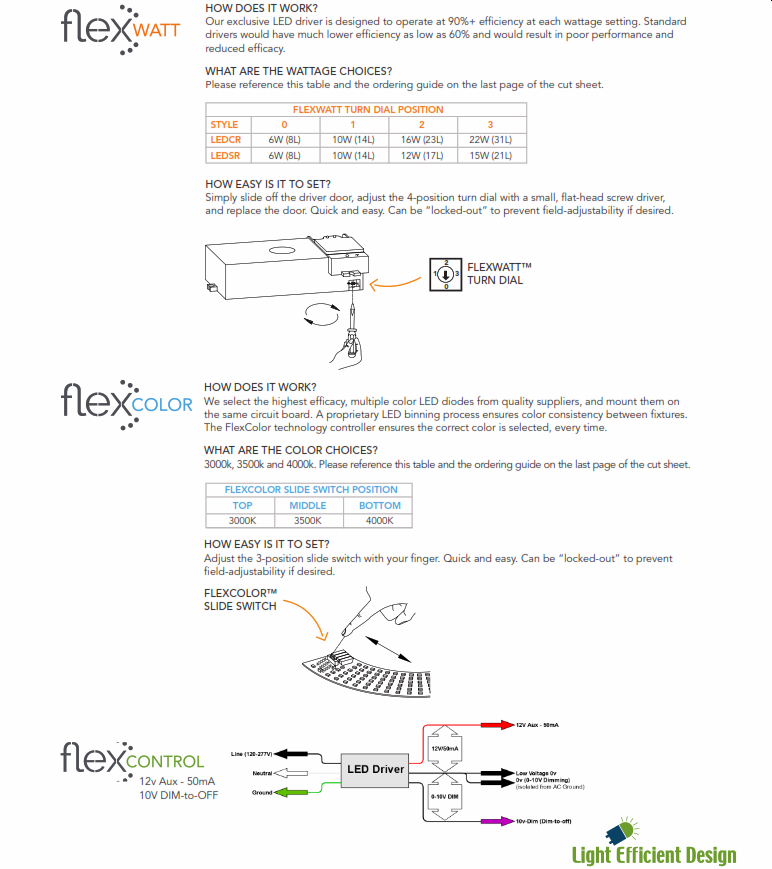

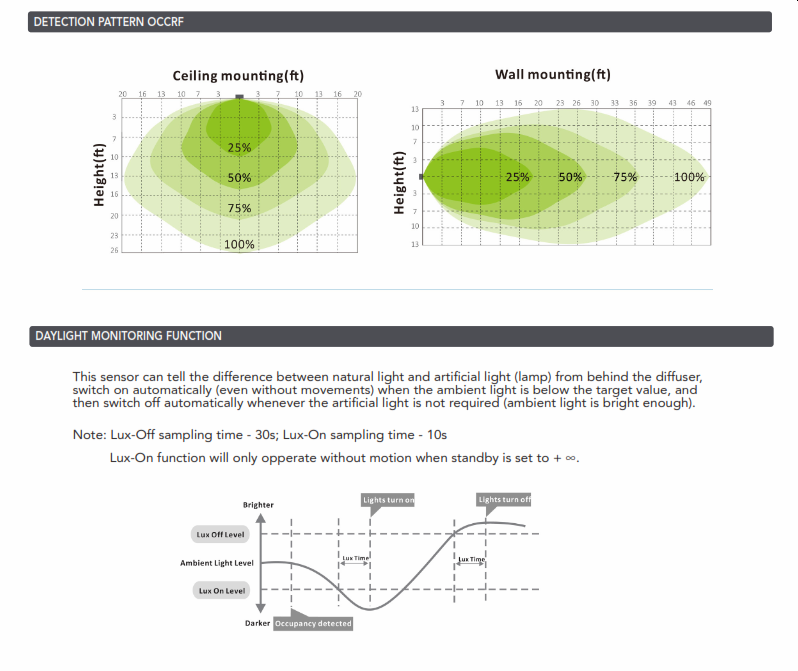

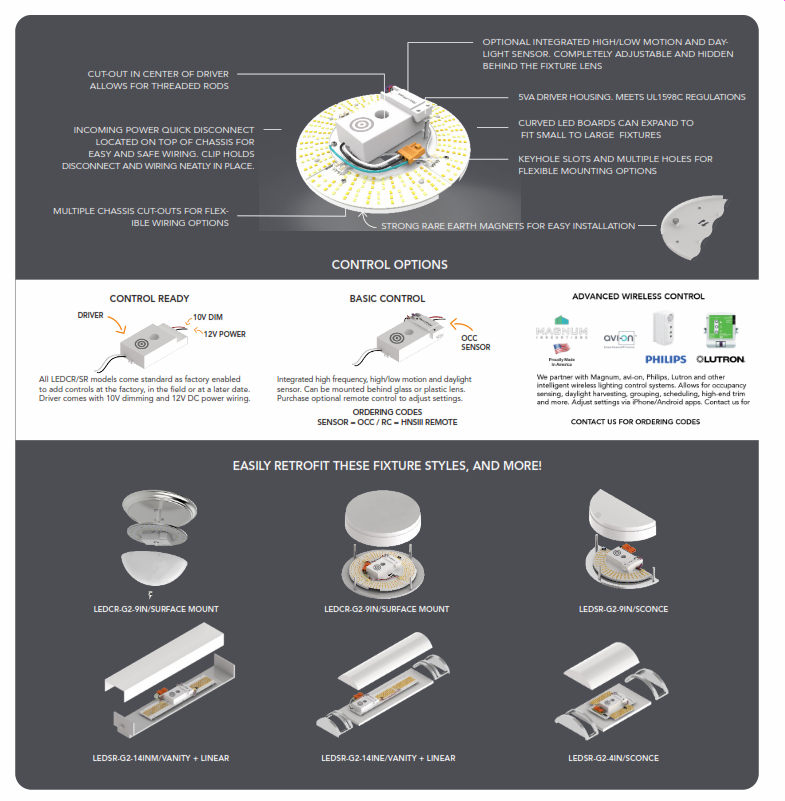

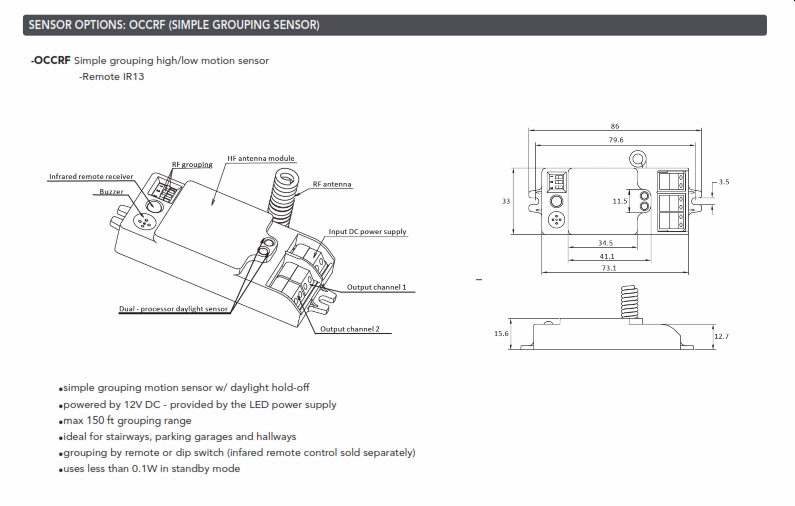

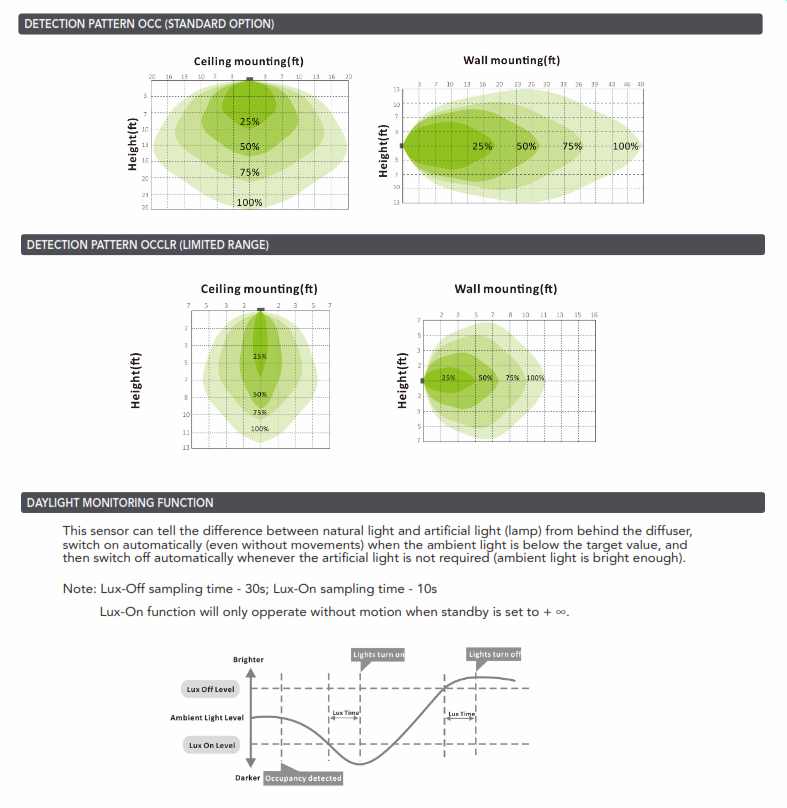

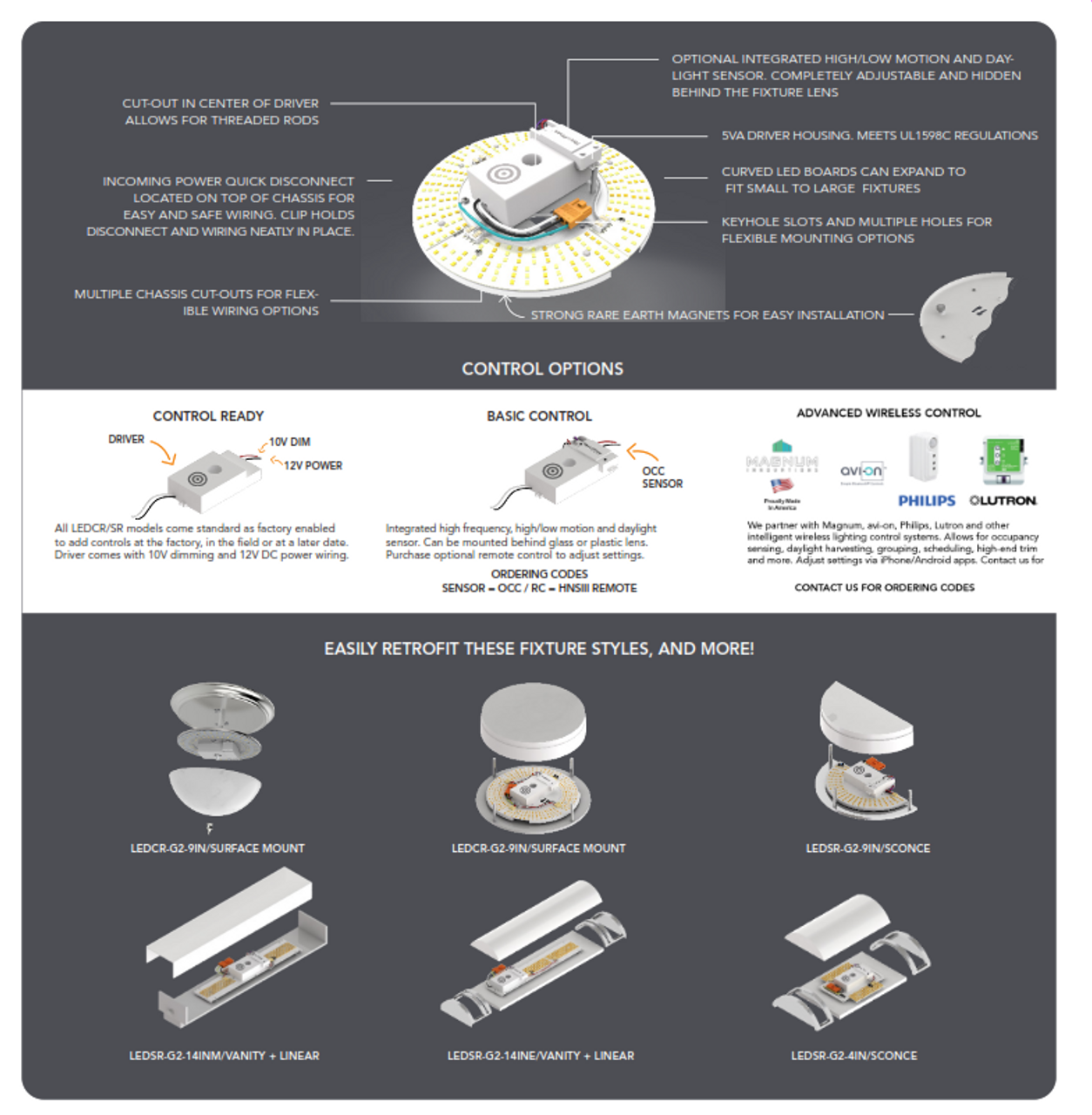

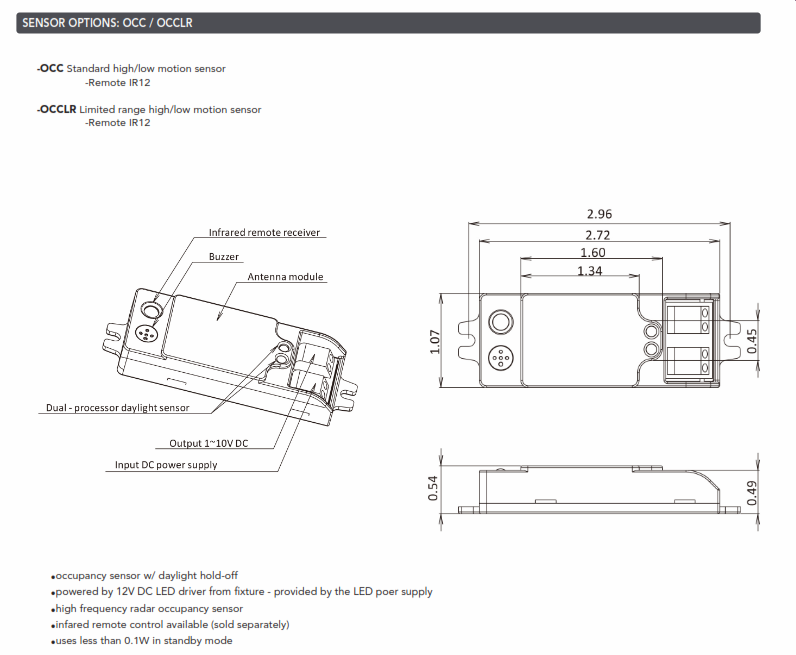

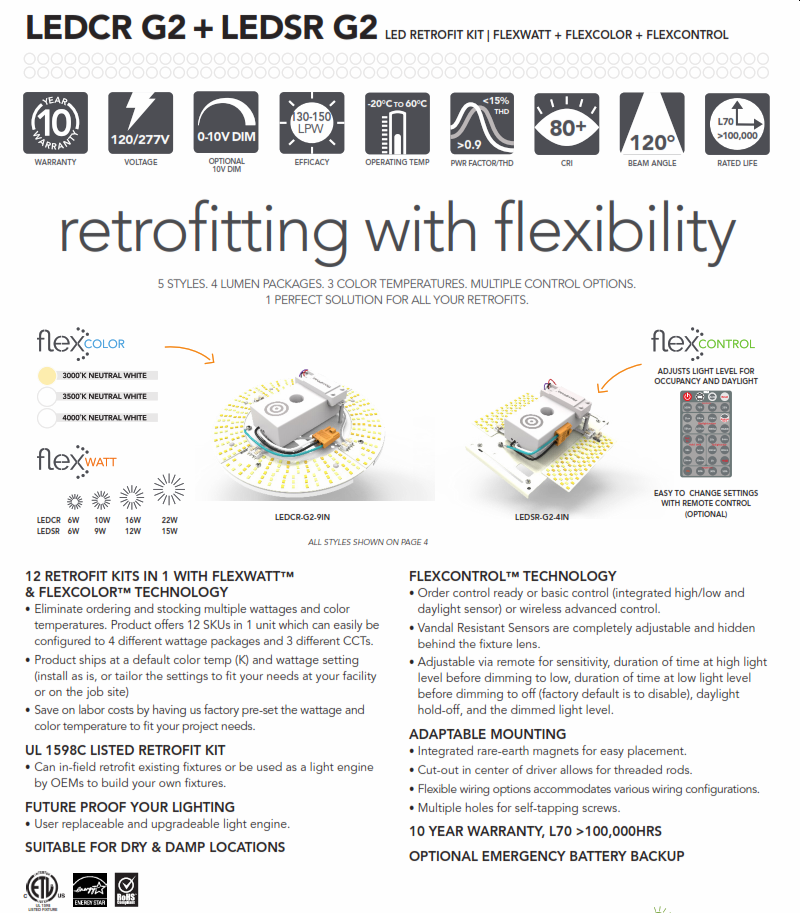

LEDCR G2 + LEDSR G2 LED RETROFIT KIT | FLEXWATT + FLEXCOLOR + FLEXCONTROL retrofitting with flexibility 12 RETROFIT KITS IN 1 WITH FLEXWATT™ & FLEXCOLOR™ TECHNOLOGY • Eliminate ordering and stocking multiple wattages and color temperatures. Product offers 12 SKUs in 1 unit which can easily be configured to 4 different wattage packages and 3 different CCTs. • Product ships at a default color temp (K) and wattage setting (install as is, or tailor the settings to fit your needs at your facility or on the job site) • Save on labor costs by having us factory pre-set the wattage and color temperature to fit your project needs. UL 1598C LISTED RETROFIT KIT • Can in-field retrofit existing fixtures or be used as a light engine by OEMs to build your own fixtures. FUTURE PROOF YOUR LIGHTING • User replaceable and upgradeable light engine. SUITABLE FOR DRY & DAMP LOCATIONS FLEXCONTROL™ TECHNOLOGY • Order control ready or basic control (integrated high/low and daylight sensor) or wireless advanced control. • Vandal Resistant Sensors are completely adjustable and hidden behind the fixture lens. • Adjustable via remote for sensitivity, duration of time at high light level before dimming to low, duration of time at low light level before dimming to off (factory default is to disable), daylight hold-off, and the dimmed light level. ADAPTABLE MOUNTING • Integrated rare-earth magnets for easy placement. • Cut-out in center of driver allows for threaded rods. • Flexible wiring options accommodates various wiring configurations. • Multiple holes for self-tapping screws. 10 YEAR WARRANTY, L70 >100,000HRS OPTIONAL EMERGENCY BATTERY BACKUP ADJUSTS LIGHT LEVEL FOR OCCUPANCY AND DAYLIGHT EASY TO CHANGE SETTINGS WITH REMOTE CONTROL (OPTIONAL) 5 STYLES. 4 LUMEN PACKAGES. 3 COLOR TEMPERATURES. MULTIPLE CONTROL OPTIONS. 1 PERFECT SOLUTION FOR ALL YOUR RETROFITS. WARRANTY VOLTAGE 120/277V OPTIONAL 10V DIM 0-10V DIM EFFICACY 130-150 LPW -20°C TO 60°C OPERATING TEMP PWR FACTOR/THD <15%THD >0.9 80+ CRI BEAM ANGLE 120° RATED LIFE >100,000 L70 C UL 1598 LISTED FIXTURE 12.09.20 Information is subject to change without notice. LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway • Cary, IL 60013
