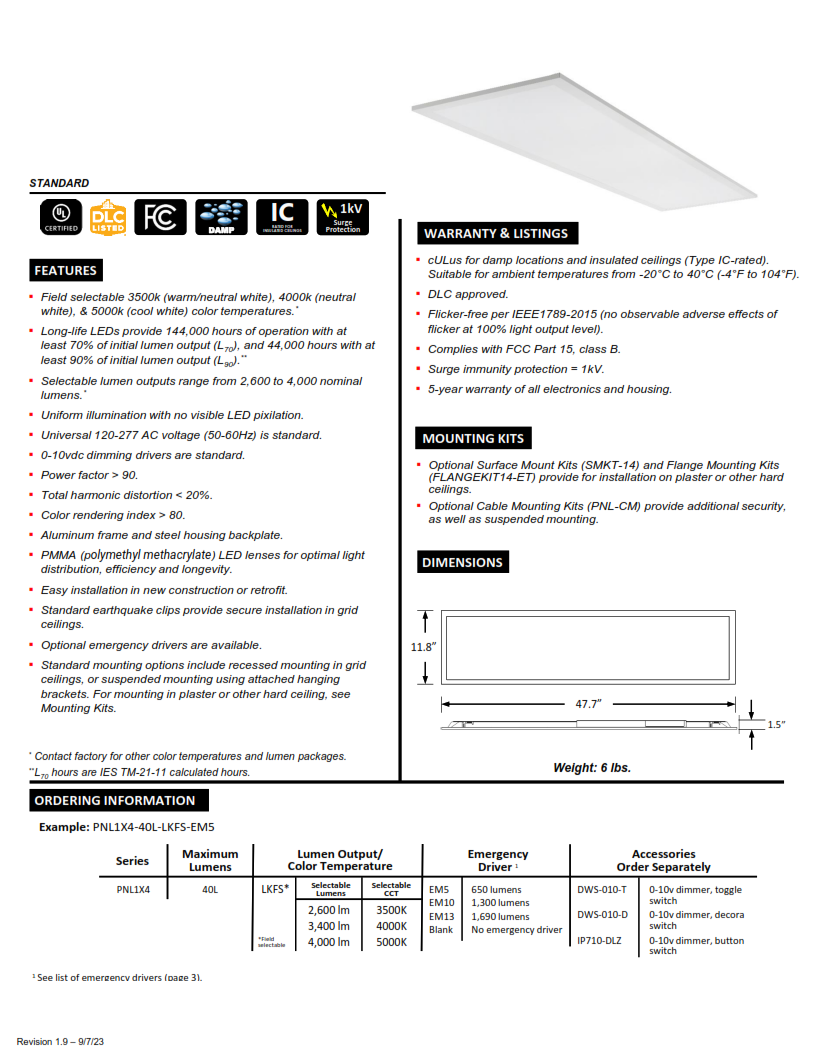

Product Description
▪Field selectable 3500k (warm/neutral white), 4000k (neutral white), & 5000k (cool white) color temperatures.*
▪Long-life LEDs provide 144,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90).**
▪Selectable lumen outputs range from 2,600 to 4,000 nominal lumens.*
▪Uniform illumination with no visible LED pixilation.
▪Universal 120-277 AC voltage (50-60Hz) is standard.
▪0-10vdc dimming drivers are standard.
▪Power factor > 90.
▪Total harmonic distortion < 20%.
▪Color rendering index > 80.
▪Aluminum frame and steel housing backplate.
▪PMMA (polymethyl methacrylate) LED lenses for optimal light distribution, efficiency and longevity.
▪Easy installation in new construction or retrofit.
▪Standard earthquake clips provide secure installation in grid ceilings.

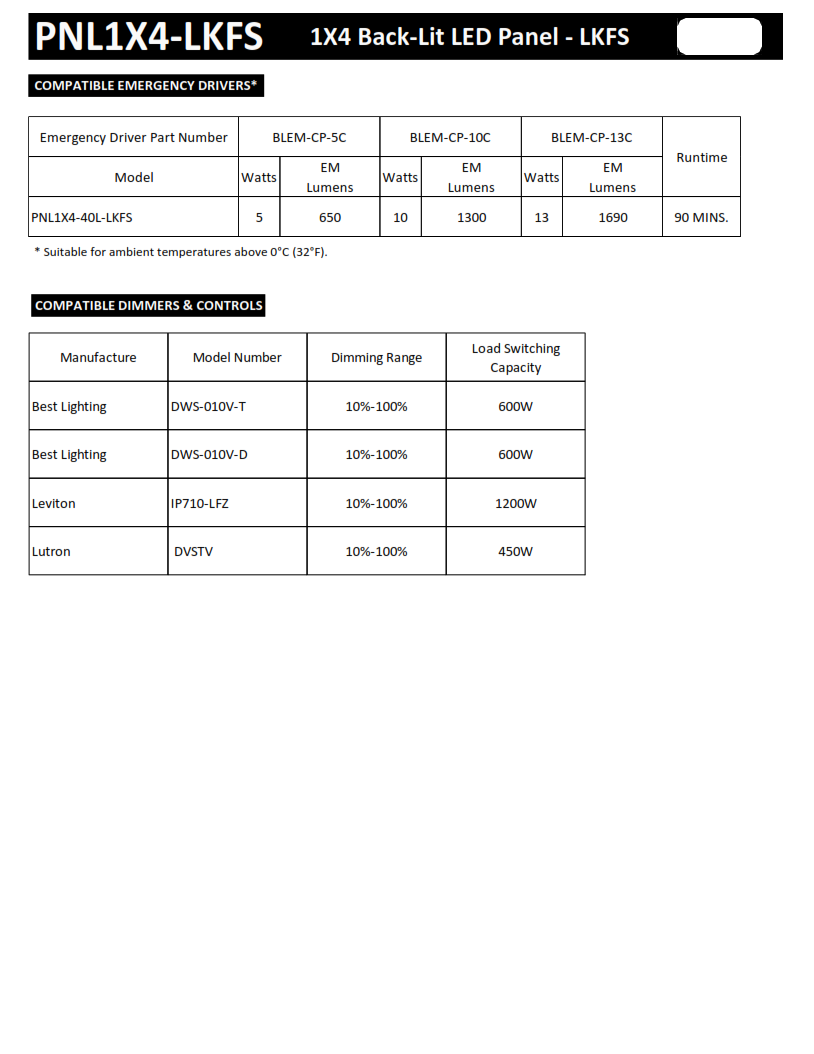

▪Optional emergency drivers (remote mounted) are available.

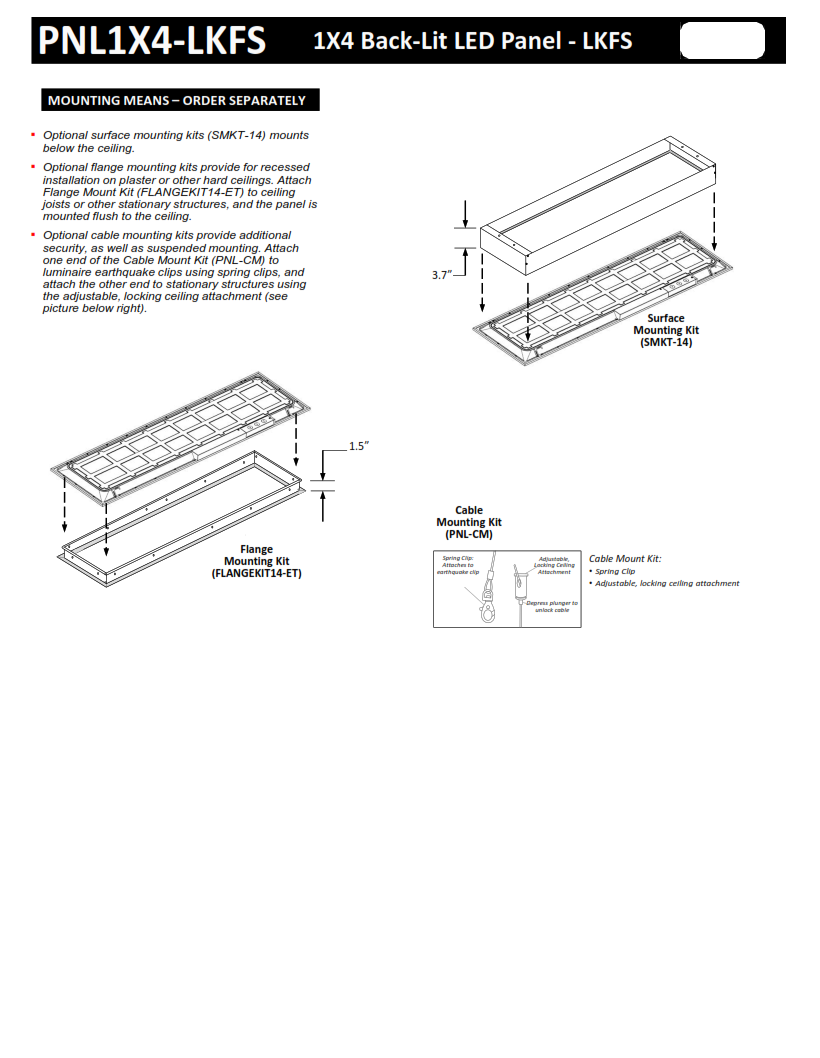

▪Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. For mounting in plaster or other hard ceiling, see Mounting Kits.
▪cULus for damp locations and insulated ceilings (Type IC-rated). Suitable for ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪DLC approved.
▪Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level).
▪Complies with FCC Part 15, class B.
▪Surge immunity protection = 1kV.
▪5-year warranty of all electronics and housing.
* Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.
