Product Description
▪Field selectable 5-CCT 3000K / 3500K / 4000K / 5000K / 6500K color temperatures.
▪Long-life LEDs provide 169,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).

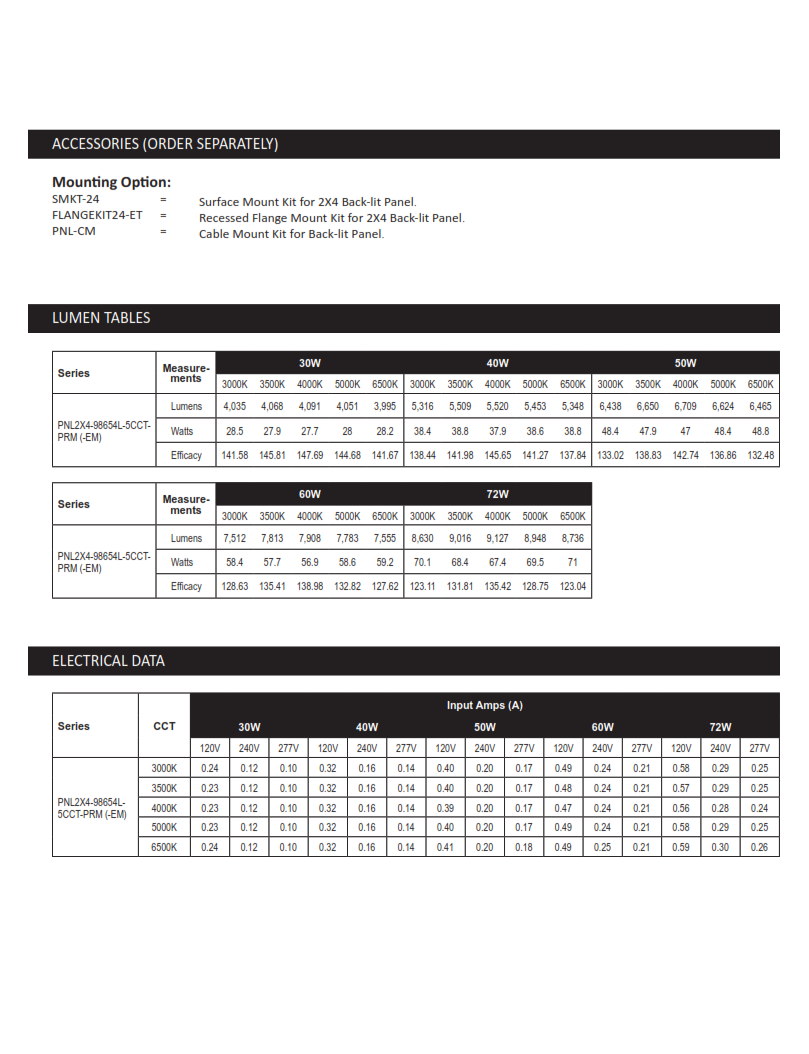

▪Selectable lumen outputs range from 4,000 to 9,000 nominal lumens.
▪Uniform illumination with no visible LED pixilation.
▪Universal 120-277 AC voltage (50-60Hz) is standard.
▪0-10vdc dimming drivers are standard.
▪Power factor > 90.
▪Total harmonic distortion < 20%.
▪Color rendering index > 80.
▪Steel frame and housing backplate.
▪ Premium PMMA (polymethyl methacrylate) LED lenses for optimal light distribution, efficiency and longevity.
▪Easy installation in new construction or retrofit.
▪Standard earthquake clips provide secure installation in grid ceilings.
▪Optional emergency drivers are available.
▪Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. For mounting in plaster or other hard ceiling, see Mounting Kits.
▪cULus for damp locations and insulated ceilings (Type IC-rated). Suitable for ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪DLC premium approved.
▪Complies with FCC Part 15, class B.
▪Surge immunity protection = 1kV.
▪5-year warranty of all electronics and housing.

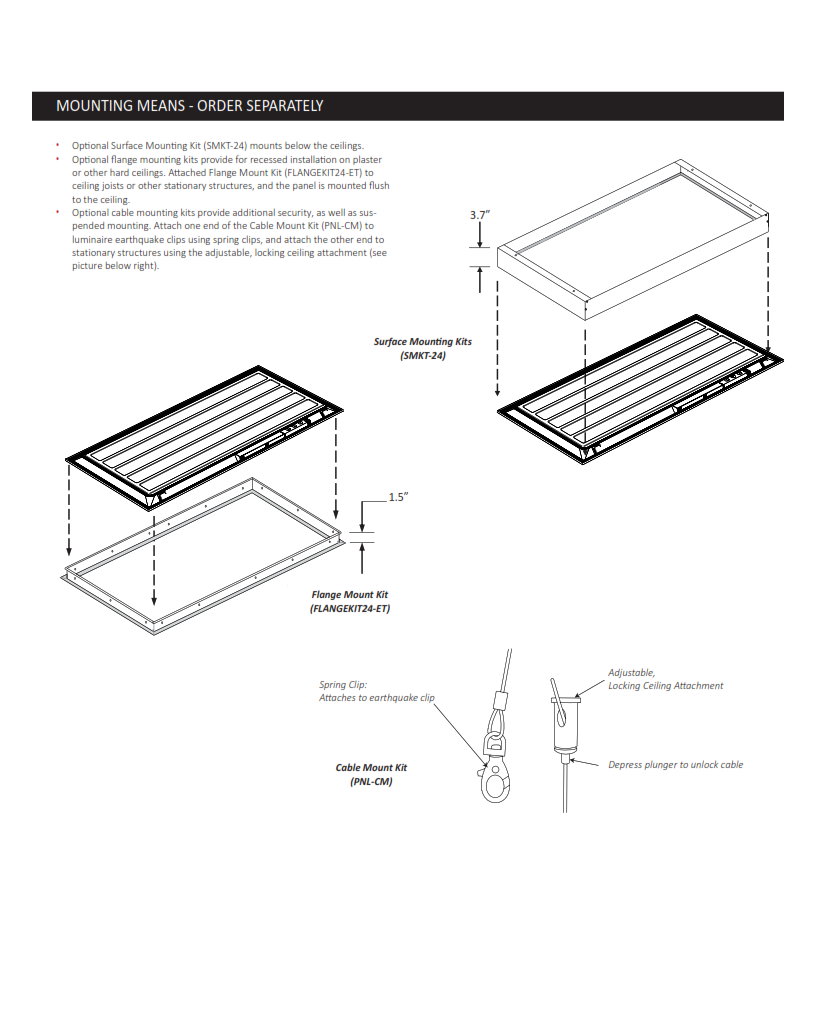

▪Optional Surface Mount Kits (SMKT-24) and Flange Mounting Kits (FLANGEKIT24-ET) provide for installation on plaster or other hard ceilings.
▪Optional Cable Mounting Kits (PNL-CMK) provide additional security, as well as suspended mounting.
