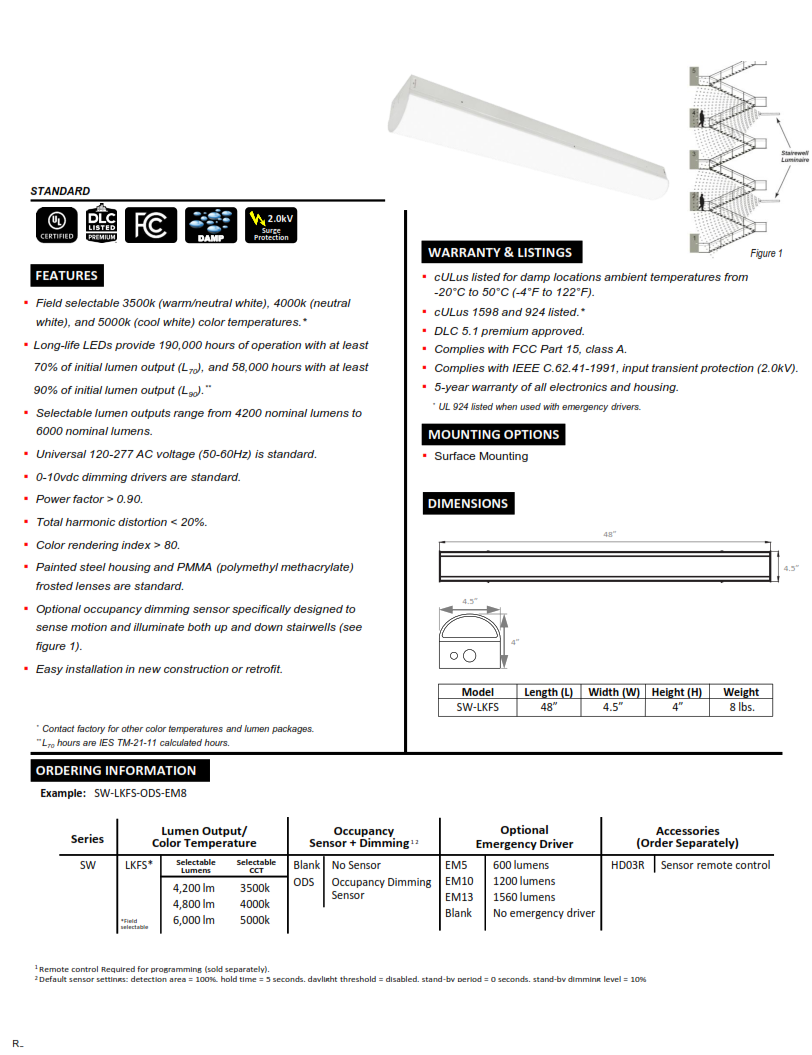

Product Description
- ▪Field selectable 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures.*
- ▪Long-life LEDs provide 190,000 hours of operation with at least 70% of initial lumen output (L70), and 58,000 hours with at least 90% of initial lumen output (L90).**
- ▪Selectable lumen outputs range from 4200 nominal lumens to 6000 nominal lumens.
- ▪Universal 120-277 AC voltage (50-60Hz) is standard.
- ▪0-10vdc dimming drivers are standard.
- ▪Power factor > 0.90.
- ▪Total harmonic distortion < 20%.
- ▪Color rendering index > 80.
- ▪Painted steel housing and PMMA (polymethyl methacrylate) frosted lenses are standard.
- ▪Optional occupancy dimming sensor specifically designed to sense motion and illuminate both up and down stairwells (fig 1).
- ▪Easy installation in new construction or retrofit.
- ▪cULus listed for damp locations ambient temperatures from
- -20°C to 50°C (-4°F to 122°F).
- ▪cULus 1598 and 924 listed.*
- ▪DLC 5.1 premium approved.
- ▪Complies with FCC Part 15, class A.
- ▪Complies with IEEE C.62.41-1991, input transient protection (2.0kV).
- ▪5-year warranty of all electronics and housing.
- ▪ Surface Mounting
- *UL 924 listed when used with emergency drivers.
