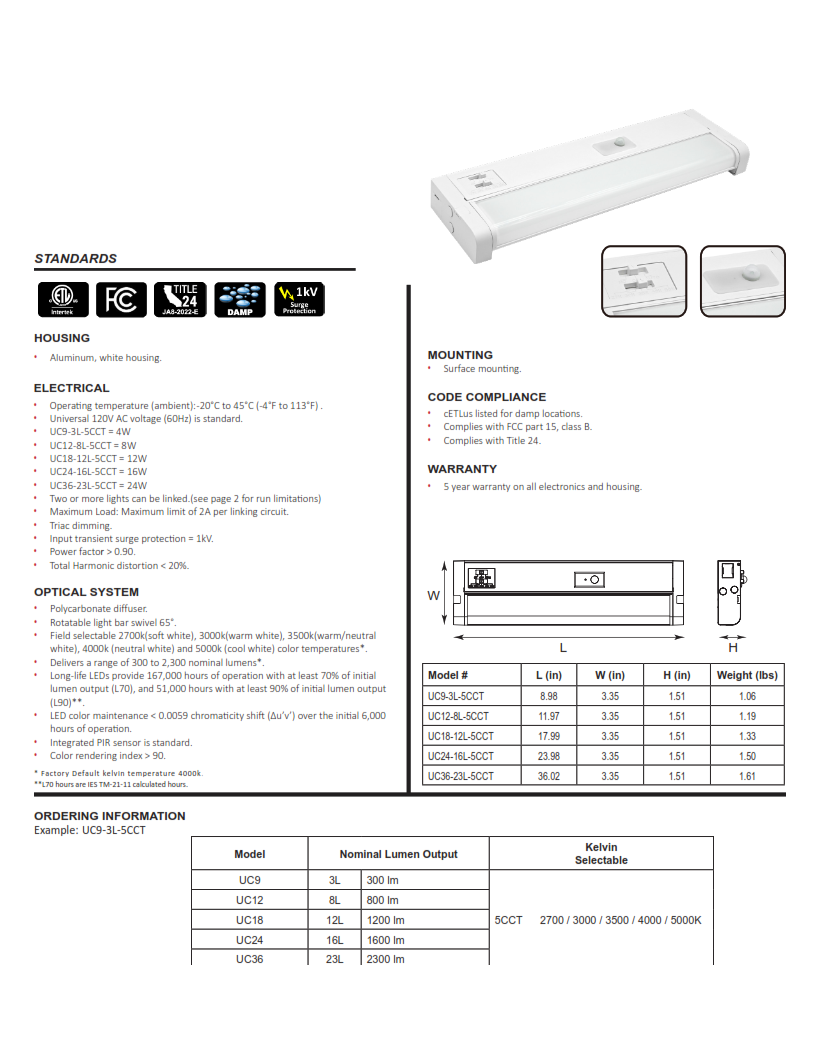

Product Description
HOUSING
- Aluminum, White housing
ELECTRICAL
- Operating temperature (ambient): -20°C to 45°C (-4°F to 113°F) .
- Universal 120V AC voltage (60Hz) is standard.
- UC9-3L-5CCT = 4W

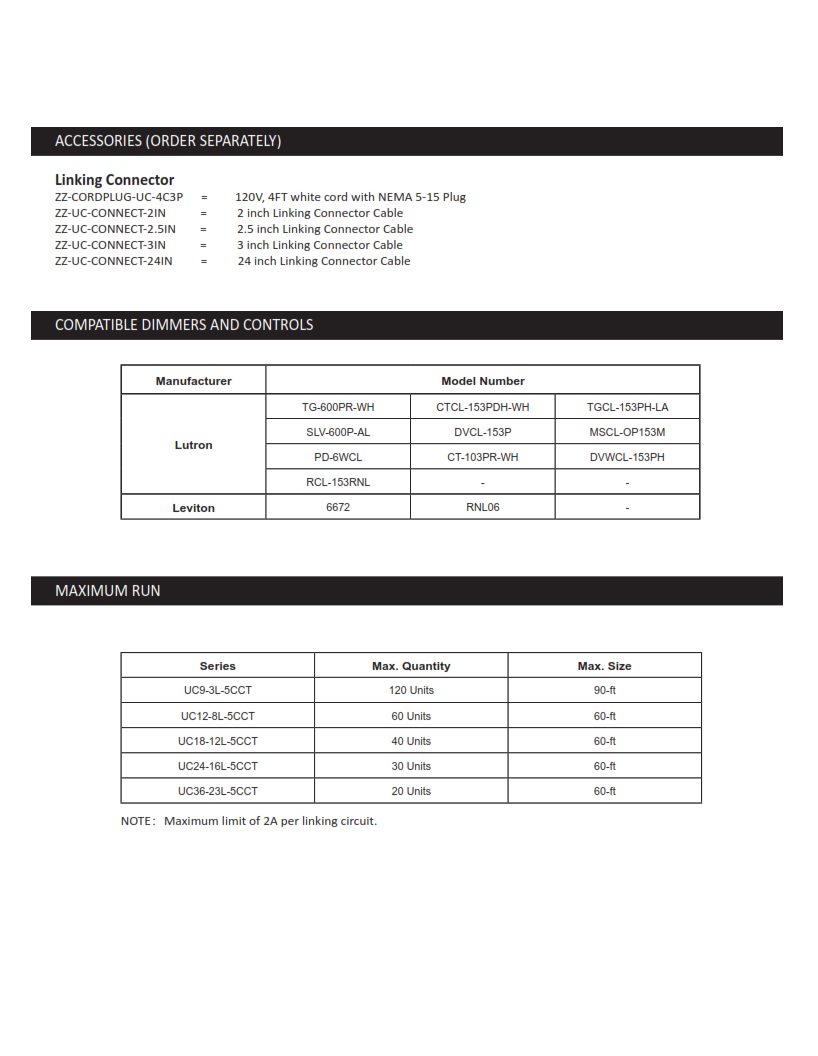

- Two or more lights can be linked.(see page 2 for run limitations)
- Maximum Load: Maximum limit of 2A per linking circuit.
- Triac dimming.
- Input transient surge protection = 1kV.
- Power factor > 0.90.
- Total Harmonic distortion < 20%.
OPTICAL SYSTEM
- Polycarbonate diffuser.
- Rotatable light bar swivel 65°.
- Field selectable 2700k, 3000k, 3500k, 4000k and 5000k color temperatures.

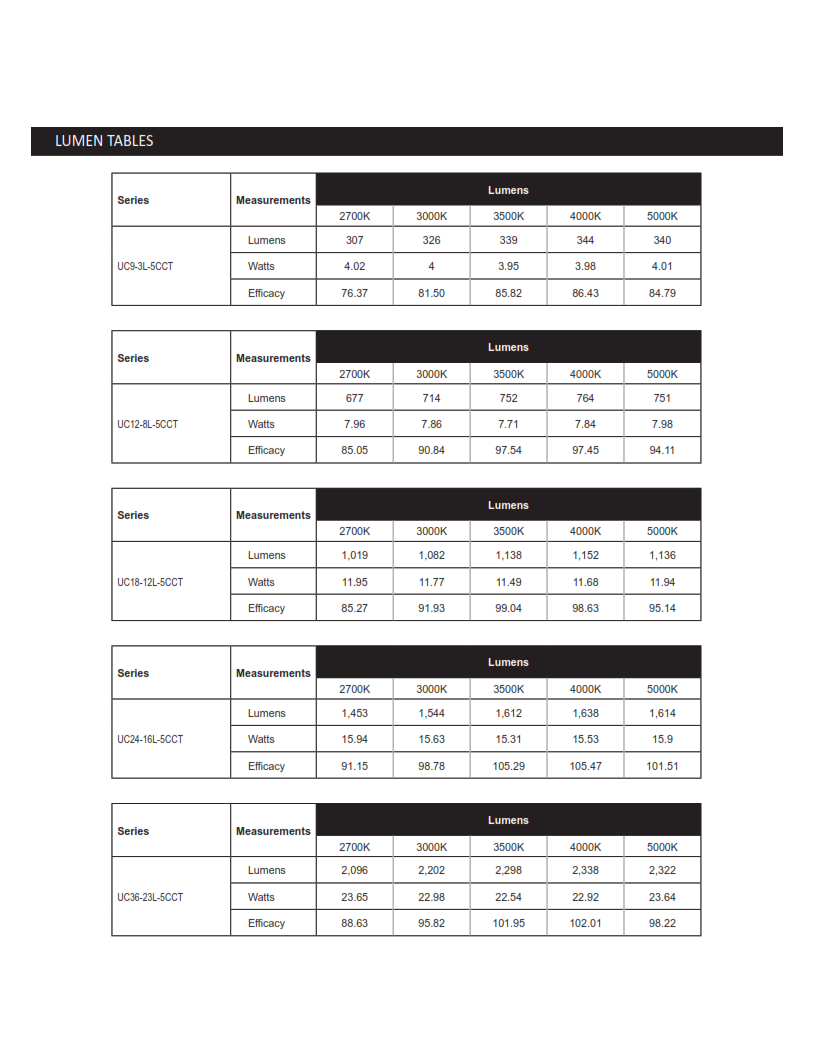

- Delivers a range of 300 nominal lumens*.
- Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).
- LED color maintenance < 0.0059 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- Integrated PIR sensor is standard.
- Color rendering index > 90.
MOUNTING
- Surface mounted
CODE COMPLIANCE
- cETLus listed for damp locations.
- Complies with FCC part 15, class B.
- Complies with Title 24.
WARRANTY
- 5 year warranty on all electronics and housing.
